Helix Nylon 32kN Snap Hook Retention Lanyard – Black Loop for Helicopter Rescue
FP-8001 Fusion Tudor Snaphook
The Tudor aluminum snap hook carabiner in black is lightweight and secure, featuring a captive eye to prevent cross-loading. The flat ring keeps rope placement stable, and the double-locking gate is easy to use one-handed. Perfect for climbing tie-ins, harness safety, and outdoor tactical use. Fusion double locking snap hook meets NFPA 1983/2017 edition standards, T rated requirements. Strength 7,193 lbf. (32kN).
- Major axis strength: 32 KN
- Minor axis strength: 13.9 KN
- Open gate strength: 10 KN
- Size: Gate opening 1"
- Weight: 0.3 LB / 4.8 OZ
- Meets and exceeds Standards: CE EN 362:04
Fusion Helix HELO Lanyard – SOCOM Ready Airborne Retention System
- Purpose-Built for Aerial Operations:
- Designed for helicopter crew, air cargo deployment, and rotary-wing operations
- Functions as a personal retention lanyard to secure operators during flight or insertion
- Rapid Release Under Load:
- Integrated Fusion SORA Snap Shackle with oversized plunger
- Enables quick detachment even under a 300 lb full load
- Rugged Construction & Stealth Finish:
- High-grade stainless steel 316 for maximum strength and durability
- Non-reflective oxide plating minimizes visual signature during covert or night ops
- Fail-Safe Safety Features:
- TIG-welded retaining split ring adds structural integrity under stress
- Swedged release pin prevents accidental disengagement—even if the retaining ring is compromised
- Certified Strength & Compliance:
- Fitted with Fusion double-locking snap hook
- Rated to 32 kN (7,193 lbf)
o 5000 lb rated MIL-spec webbing
- Fully compliant with NFPA 1983/2017 (T-Rated) performance standards
- Operator-Focused Design:
- Built for mission-critical performance in high-threat, high-mobility environments
- Developed to meet the operational demands of SOCOM and elite military units
- Tagline:
- Combat Proven. Operator Approved. When seconds count—trust Fusion.
--------------------------------------------------------------------
- MBS: 23KN

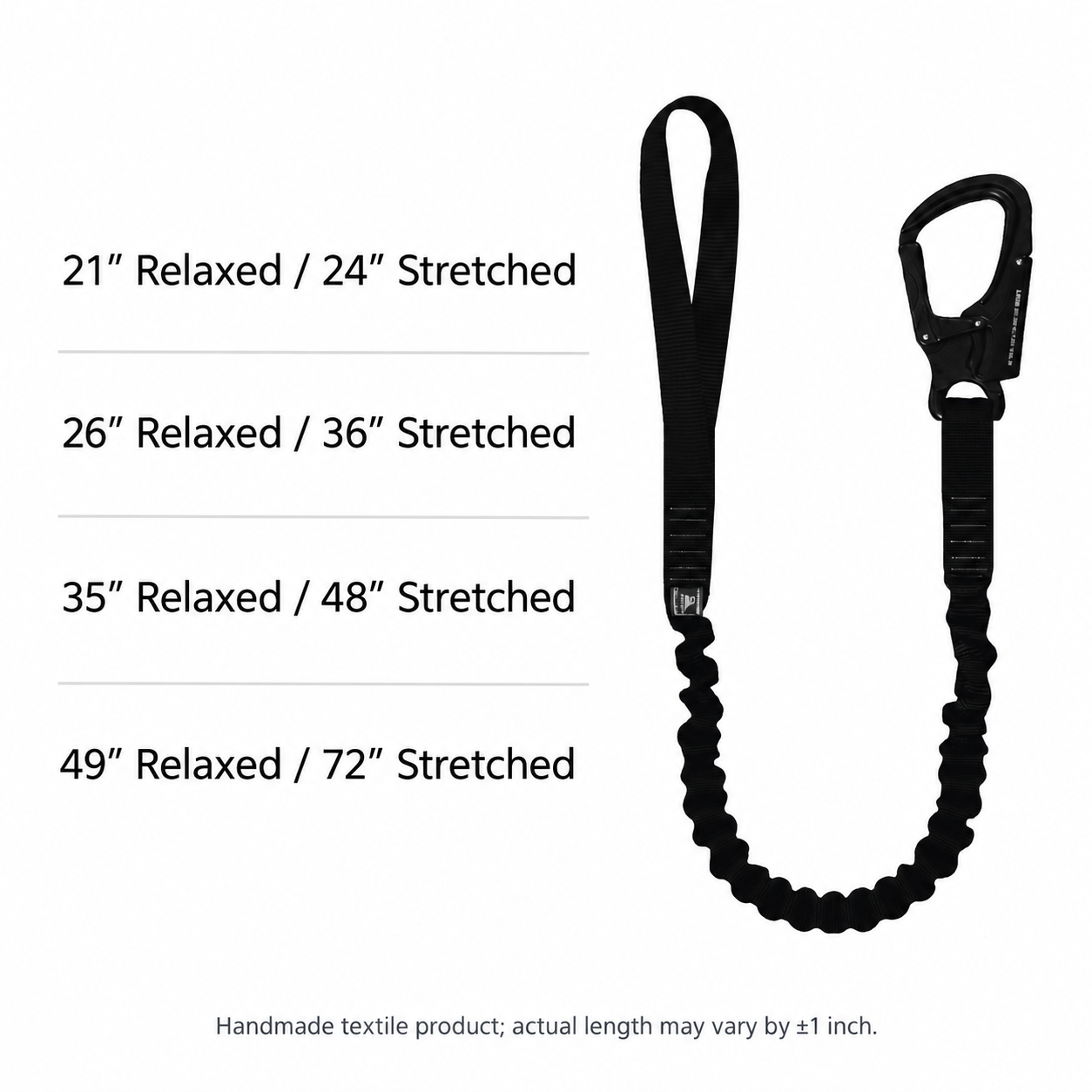

- Length: 24", 36", 48", 72"/ Constructed of 1" wide nylon webbing
- Meets and exceed Standard: EN 17109:2018, EN 358:1999
